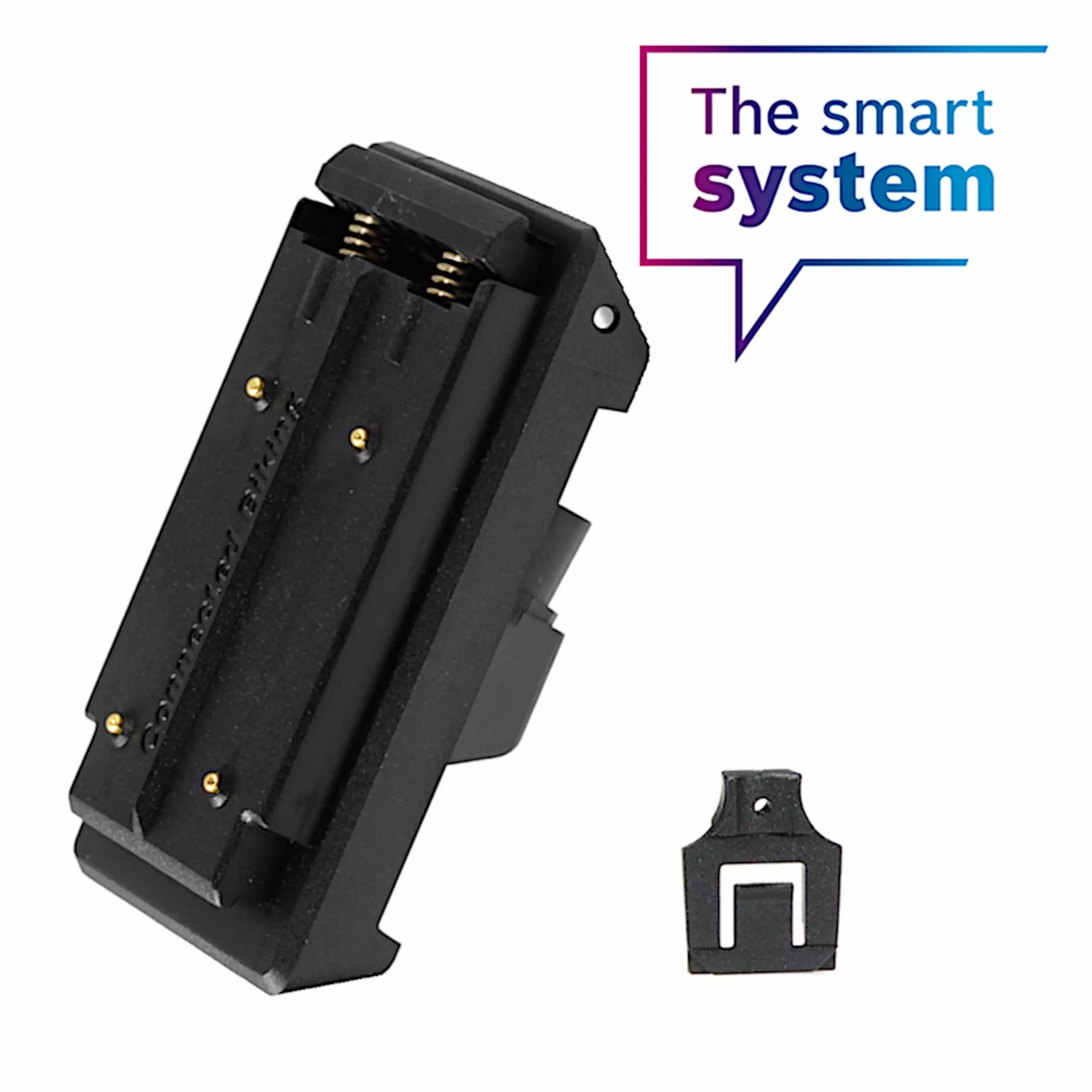

Bosch Display Mount Adapter, Front Cable Outlet (BDS3250) Smart System

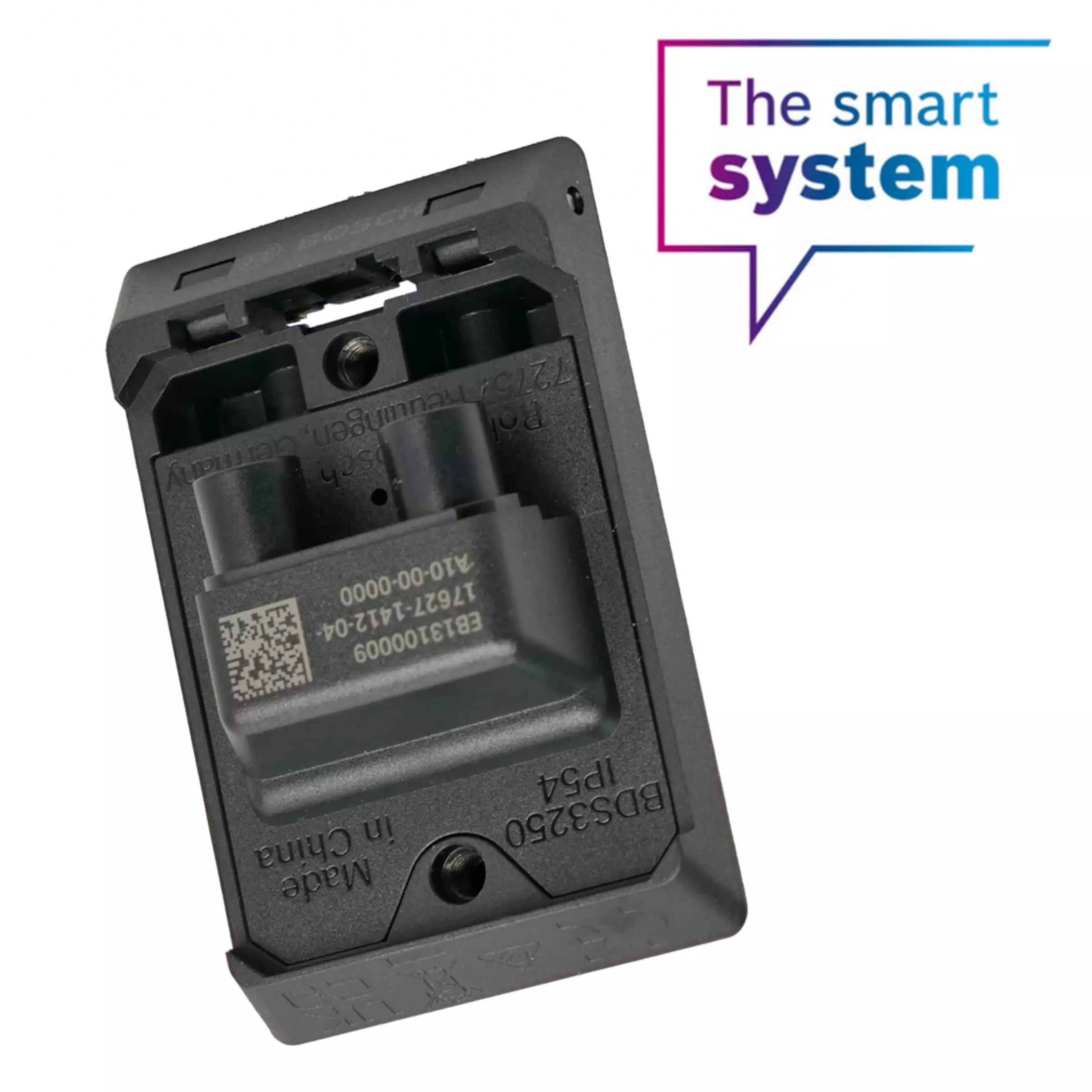

For the connection to the Bosch Kiox 300 or the SmartphoneGrip from the Bosch eBike Smart System, the display mount is required as an adapter to be able to attach the components to the handlebar mount. To connect the LED Remote and motor control, the Smart System display cables are plugged into the two connection sockets on the back side. Depending on the positioning of the holder and the cable routing, the Bosch display holder is available in two connection versions, one connecting at the front and one at the back (prod. code 233099801). The adapter version with cable going out the front (in the direction of travel) is suitable for cable routing with the holder positioned behind the handlebar. The spring mechanism and the Bosch logo always point in the direction of travel.

Details:
• Display mount for Bosch eBike Smart System BES3
• Enables the use of e-bike displays or SmartphoneGrip (BSP3200)
• For e-bikes with the 2022 Bosch Smart System or later
• Cable outlet for routing to the front
• Screws onto the Bosch handlebar bracket
• Spring release for easy detachment and attachment of the display
• Incl. screwable removal lock for the Kiox 300 display
• Power supply via the e-bike on-board network
• System connection and control via the LED Remote

Technical details:
• Bosch part #: BDS3250
• Intended use: E-Bike
• Bosch product series compatibility: Performance Line CX
• Compatibility: holder for display mount, Kiox 300 / SmartphoneGrip (BDS3630)
• Material: plastic, metal

In the box:
• 1 Bosch display mount adapter, front cable outlet
• Comes with a safety plate

Note:
The Bosch display mount is not compatible with the Kiox display BUI330 and the Compact control unit.
