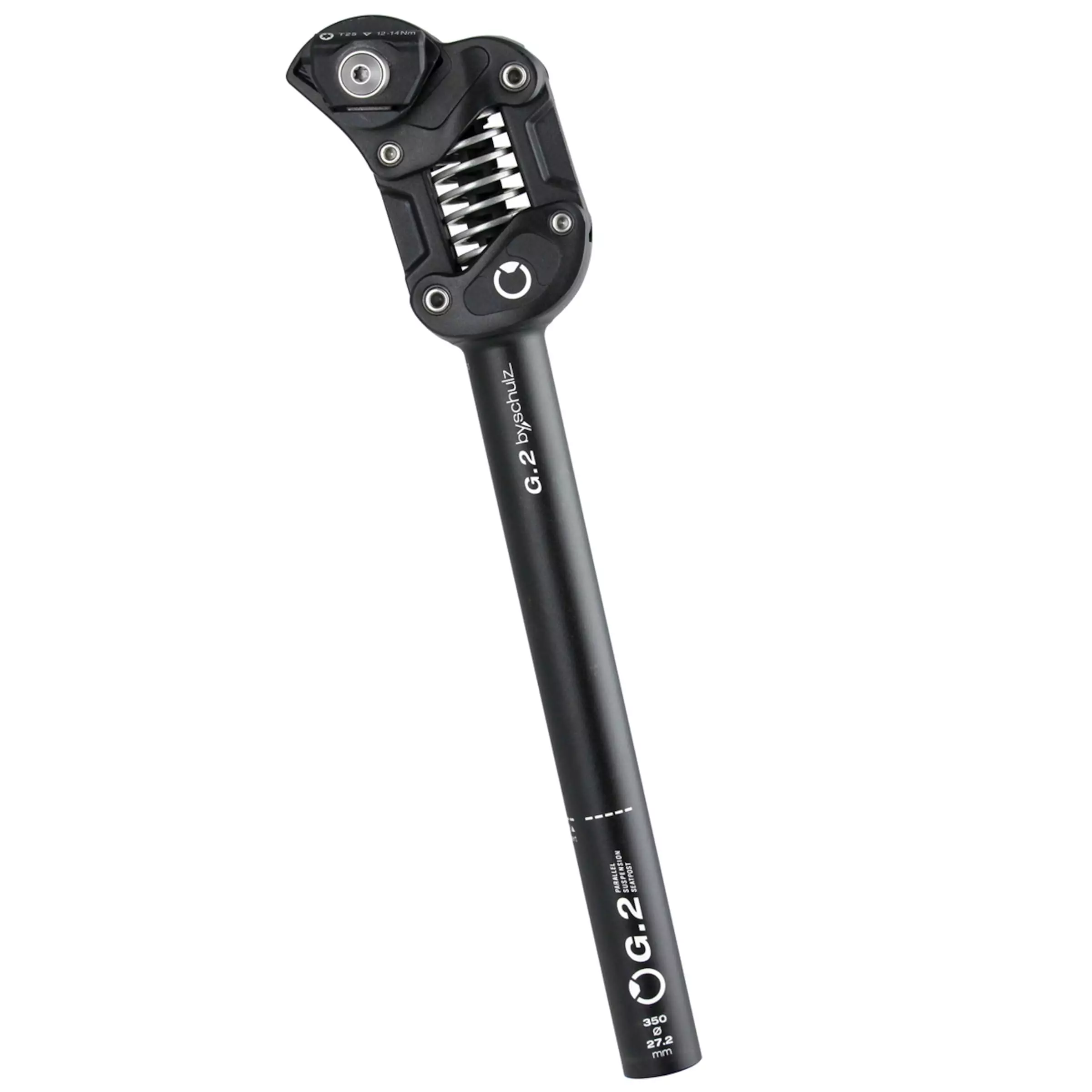

By Schulz By.Schulz G.2 Suspension Seatpost With Parallel Linkage Design For E-Bikes

As it is precisely adapted to the rider’s weight, the by.Schulz G.2 suspension seatpost ensures maximum comfort on your electric touring or city bike. Apart from the weight-related basic version, you can choose between various steel springs of different hardness to individually adjust the suspension comfort (sold separately, prod. code: 2200668).

Despite a low stack height, the seat post with progressive suspension and parallel linkage technology pleasantly absorbs shocks with increasing spring resistance. In combination with the internal elastomer insert, the robust suspension element even prevents bottoming out when riding through deeper potholes. This version comes with a shorter travel than the long-travel version by.Schulz G.2 (prod. code: 2269461) with a longer progression line for soft suspension.

Details:

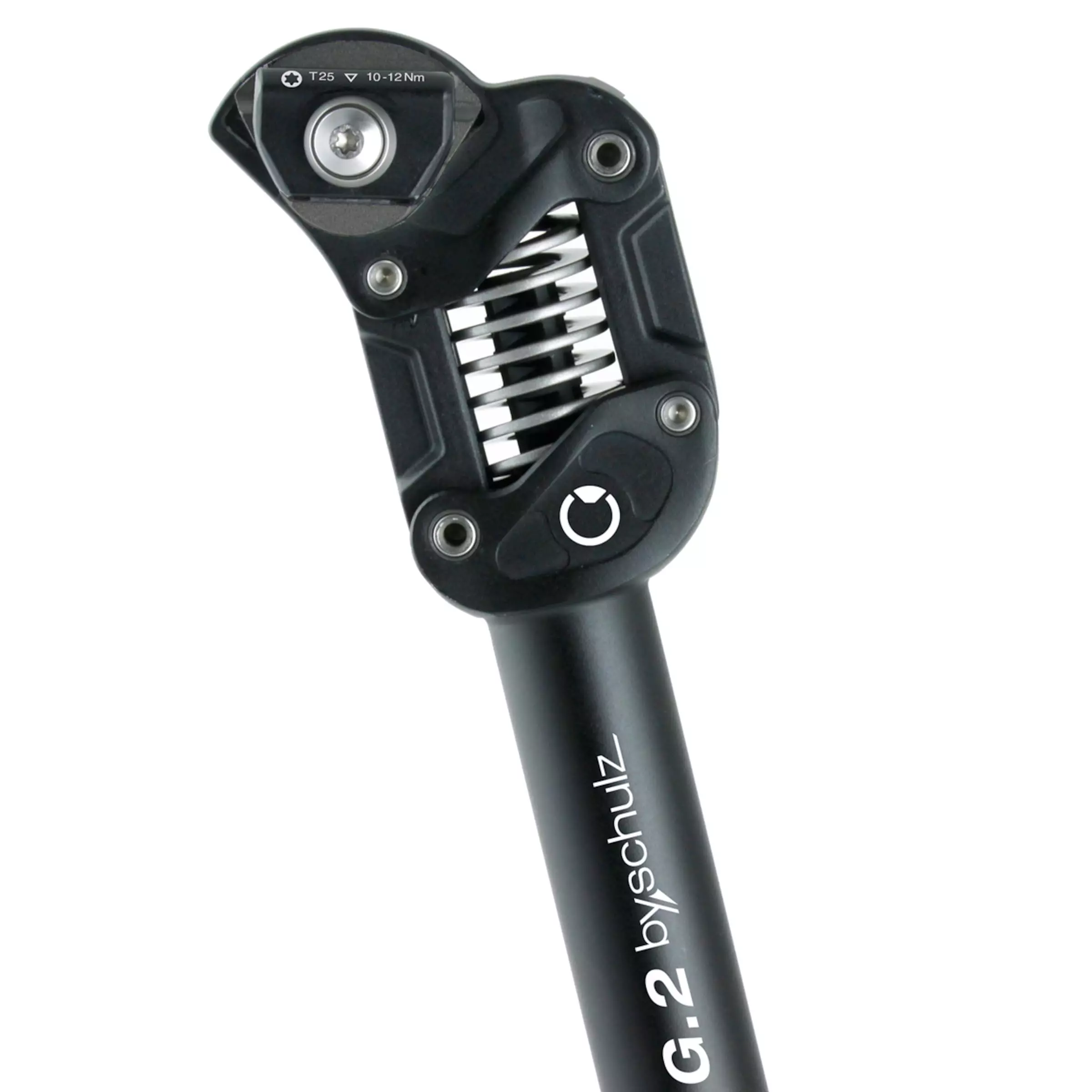

· Suspension seat post with parallel linkage design
· E-bike ready
· Low stack height, slim design
· High suspension comfort
· Sensitive response
· Low-friction with low offset
· Torsionally stiff
· IGUS polymer high-performance plain bearings/stainless steel axles
· Suspension elements in 5 different levels of hardness, easy to replace
· For saddle rails with 7mm Ø
· Saddle clamp with precise adjustment option and robust ratchet mechanism
· Defined adjustment range with upper and lower limit
· Max. rider weight: 150 kg
· Stack height: approx. 99 mm
· Travel: approx. 30 mm
· Offset: approx. 17 mm
· Length: 350 – 450mm (can be cut to size)
· Tube Ø: 26,4 – 34,9 mm
· Material: AL-6066-T6, 3D forged
· Weight: from approx. 590 g (Ø 27,2 / 350 mm)

In the box: seat post, mud cover

Tip: If the diameter of the seat post does not fit the seat tube of your frame, you may use the precisely fitting by.Schulz G.Shim adapter (prod. code: 2269466). The by.Schulz Mudcover made of neoprene protects the parallel linkage mechanism of the seat post from dirt and reduces the risk of pinching your fingers (product code: 2269464).
