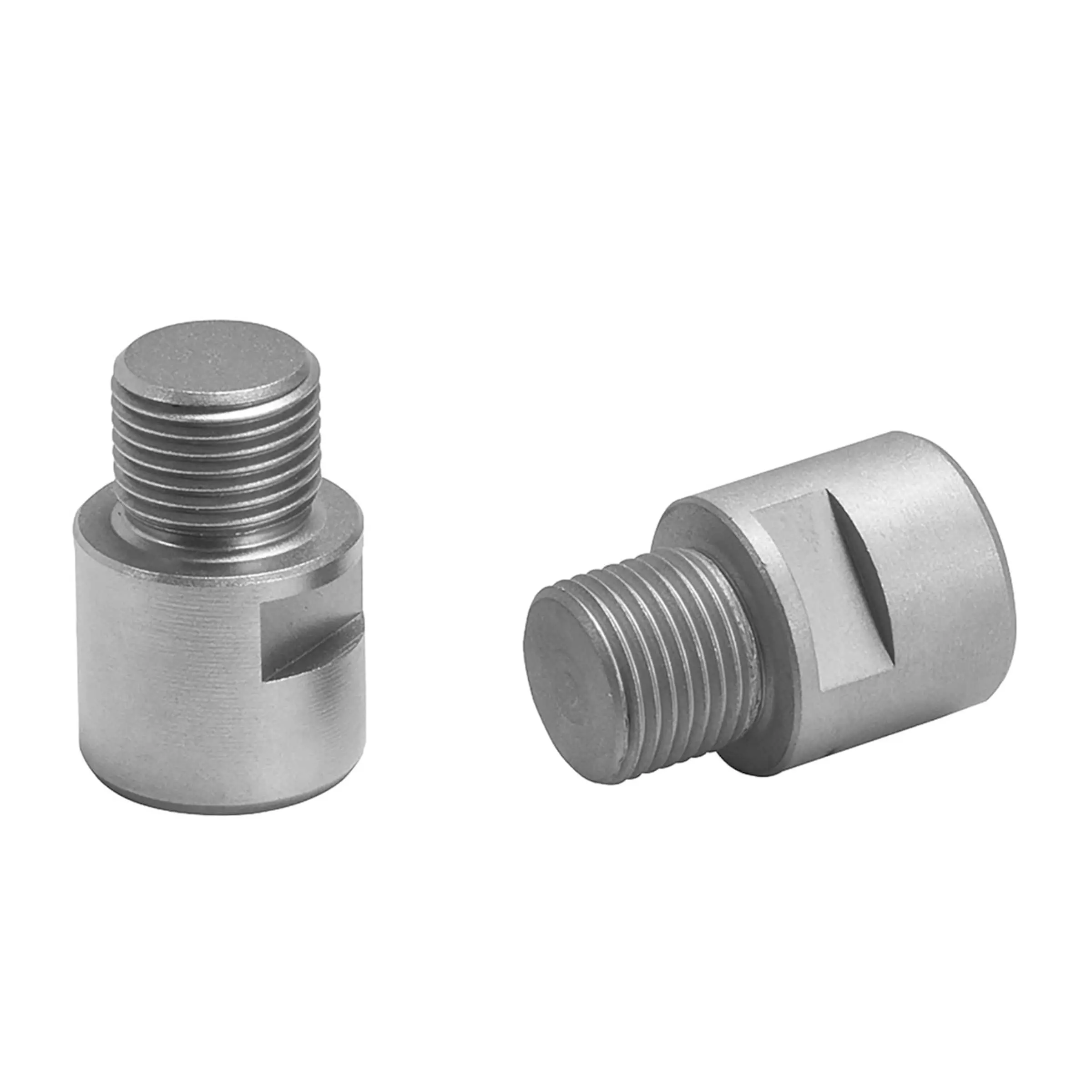

Ergotec Pedal Extenders

Everyone has an individual leg posture, which primarily depends on the body height. As a screw adapter, the Ergotec pedal axle extension set enlarges the Q factor of the crank width, analogous to the performance mechanics of larger or stronger riders. Finally, an even motion sequence is possible, without frequent contact with the crank. Now, the power is transferred to the pedal with a natural posture of the foot, because the axle lengths are adapted to the shoe size and foot posture. In this way, the energy is brought directly on the pedal and the foot stays in the correct position. This can prevent inappropriate mechanical stress and thus efficiently protect the joints of the biker.

Details:
· Width: 18 mm
· Thread: 9/16“ outside – 9/16“ inside
· Material: stainless steel
· Weight: 78 g

Please note:
Only for use on pedals with 15 mm socket. Must not be used on pedals with a hex socket only.
During assembly, attention has to be paid to the ground clearance in compliance with DIN EN ISO 4210-2:2015-01 / 4.13.2.1.
