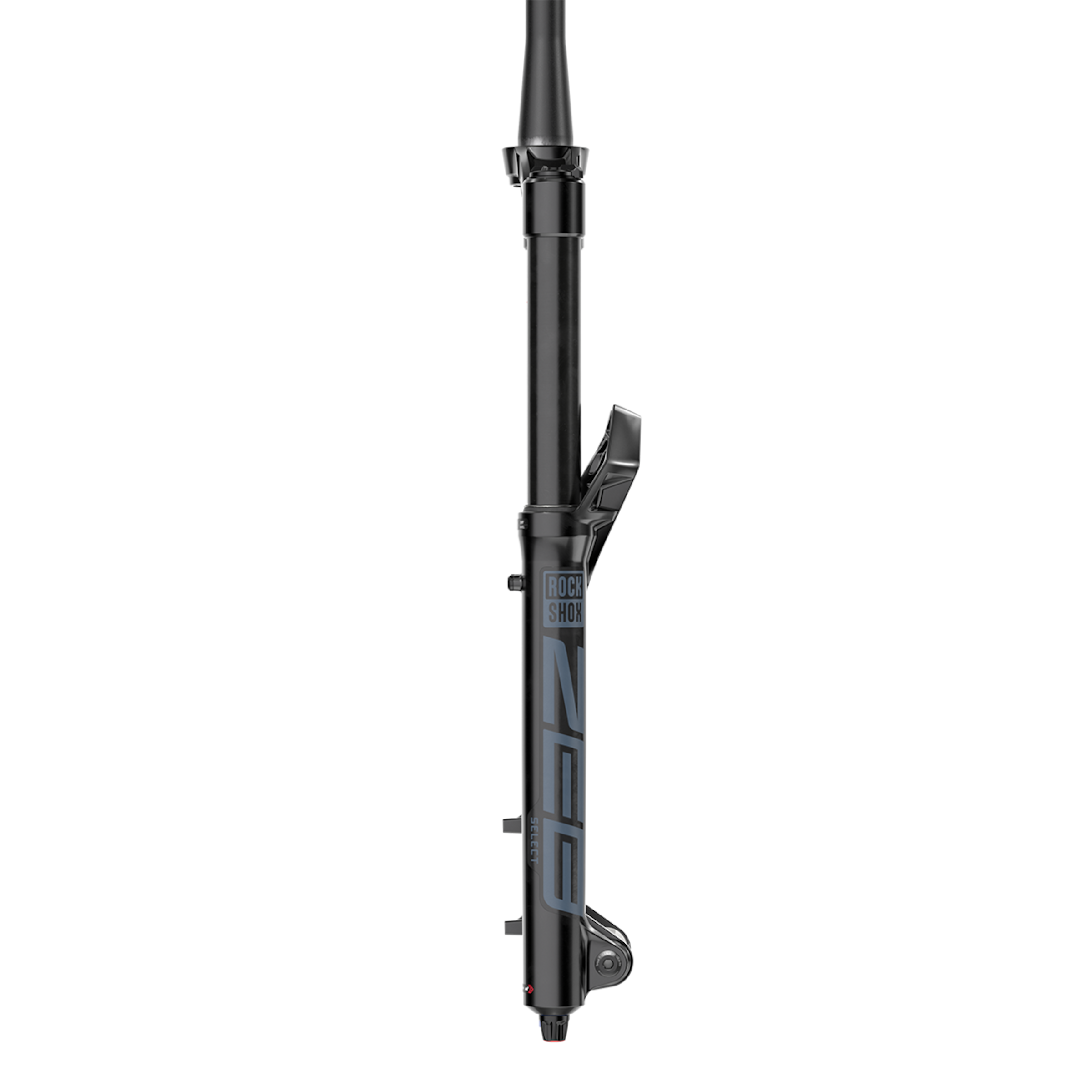

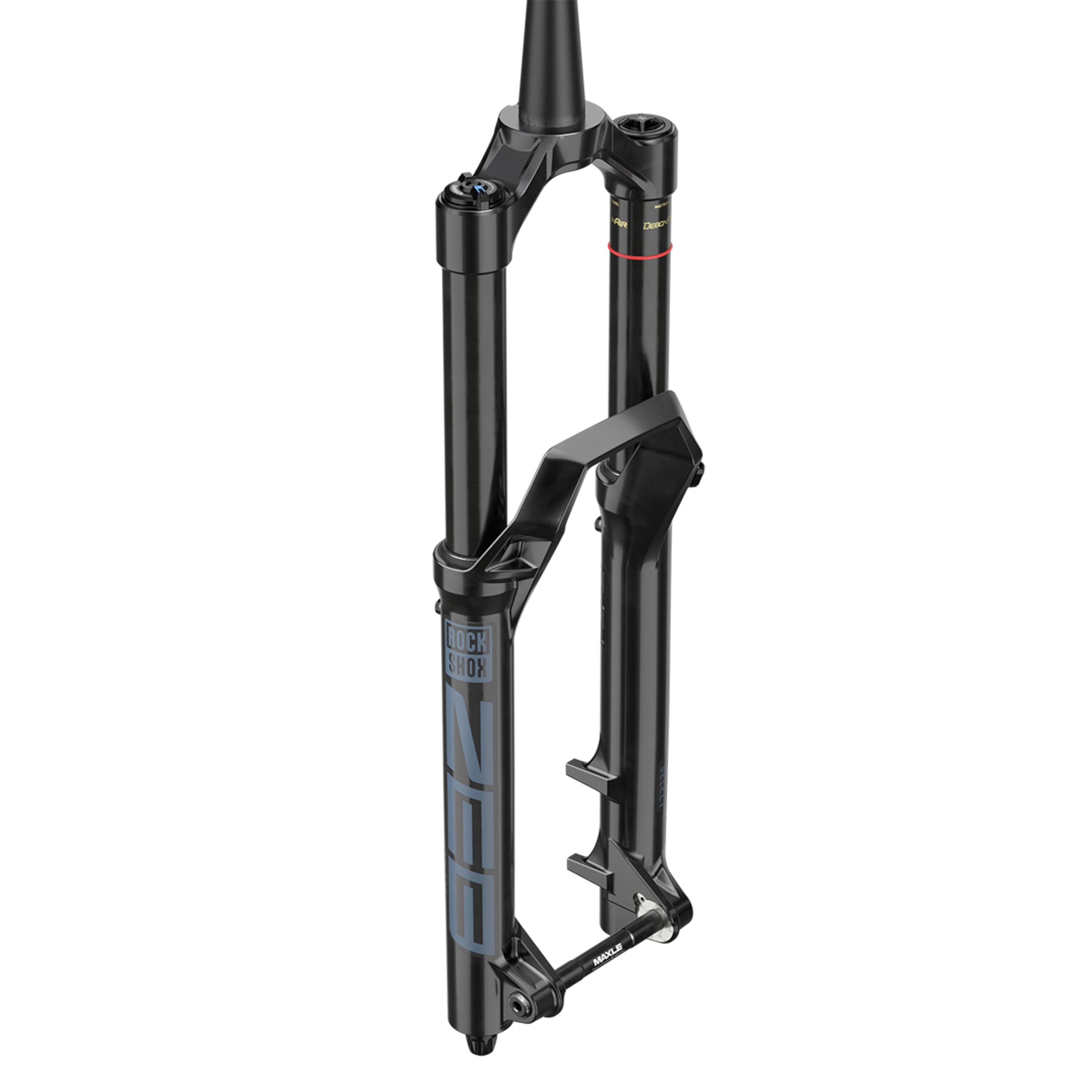

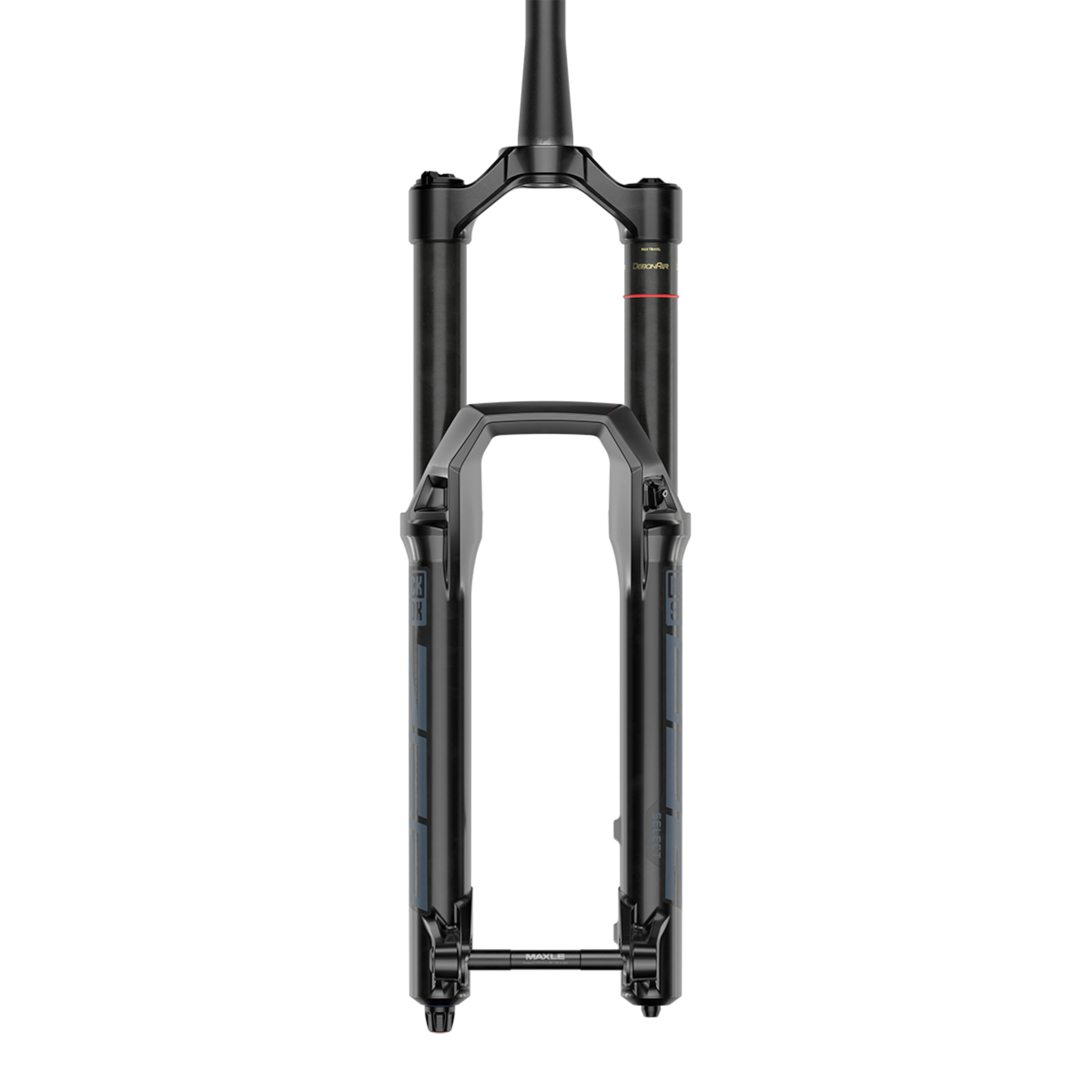

Rock-shox Rock Shox ZEB Select Charger™ RC DebonAir+™ MTB Suspension Fork

Plenty of suspension travel, few excuses!
What the RockShox engineers have devised and moulded in their design centre in Colorado, at the foot of the legendary Pikes Peak, will have adrenaline-driven Enduro riders crying for joy. Stiff 38 mm stanchions, a sturdy chassis and the finest suspension and damping technologies are designed to provide sufficient reserves at all times, even on the toughest Enduro courses, and to enable maximum control for precise lines. So the ZEB in RockShox’s portfolio is right in between the downhill double bridge BoXXer and the 35 mm all-purpose weapon Lyrik.

Even visually, RockShox leaves no doubt that the ZEB Select can withstand a lot. The bulky, CNC-machined aluminium fork crown with its angular appearance fits seamlessly into the design of modern frames with voluminous head tubes. The wide flared bridge also aims to avoid collisions with the head tube during hard shocks. On the other hand, numerous cut-outs help to keep the extra weight down despite the increased stiffness.
Inside, the proven Charger RC damping system is at work with its adjustable low-speed compression and rebound damping. In combination with the DebonAir+™ air suspension, newly developed for the 2023 model year, the ZEB Select acts sensitively and dampens easily in equal measure, while reliably maintaining high suspension travel.

The ZEB has already proven that these features are particularly useful for full-blooded enduro riders on the endless heights and depths of Pikes Peak in the Rocky Mountains. The grand four-thousand-metre peak offers ideal test conditions for this and has already given RockShox’s sister model Pike its name. So it’s no wonder that the ZEB was also named in homage to the unofficial RockShox “home mountain”. It was first mapped in 1806 by the American explorer Zebulon Pike and later named after him – just like the RockShox ZEB.
Zebulon Pike himself, by the way, considered the mountain unconquerable at the time. An assessment that was to last only a few years. And that is exactly what ZEB stands for: Exploring the feasible at the limits of the possible. Or as RockShox puts it: ZEB ain’t dead!

Details:
• Robust 38 mm chassis for more stiffness and safety on the world’s toughest trails
• Charger RC shock with low-speed compression and rebound adjustment
• The DebonAir+™ air spring is designed to strike the perfect balance between what riders really want: buttery responsiveness, more support throughout the travel, and a fork that stands taller in the travel, for more confidence when the going gets steep
• Compatible with Pressure Relief Valves (optional pressure relief valves can be retrofitted)
• RockShox Maxima Plush damping fluid for reduced friction and improved response
• Screw-in torque cap adapters for easier wheel assembly when used with standard hub end caps
• Bottomless Tokens
• Compatible with Torque Caps
• Maxle Stealth thru axle

Technical details:
• Intended use: Enduro, Freeride
• Material fork bridge: anodised aluminium
• Material upper tubes: aluminium (Ø 38 mm, low-friction anodised, black)
• Material lower fork tubes: magnesium
• Steerer: tapered 1 ⅛” – 1 ½” (aluminium, without thread)
• Suspension: DebonAir+™
• Damping technology: Charger™ RC
• Adjustments: air pressure, external rebound, external low-speed compression
• Compatible with screw fenders: yes (RockShox 3-hole short fender)
• Disc brake mount: PostMount 8″ (203 mm Direct Mount)
• Max. brake disc Ø: 220 mm
• Front hub spacing: 15 x 110 mm (Boost)

Wheel size 27.5”:
• Travel: 170 mm, 180 mm or 190 mm
• Fork length: 567 mm (170 mm); 577 mm (180 mm); 587 mm (190 mm)
• Offset: 44 mm
• Max. tyre diameter: 732 mm
• Max. tyre width: 81 mm

Wheel size 29”:
• Travel: 170 mm, 180 mm or 190 mm
• Fork length: 586 mm (170 mm); 596 mm (180 mm); 606 mm (190 mm)
• Offset: 44 mm
• Max. tyre diameter: 770 mm
• Max. tyre width: 81 mm

In the box:
• 1 Rock Shox ZEB Select DebonAir+™ suspension fork
• 1 Maxle Stealth thru axle, 15 mm
• 1 Fender
• 1 steel star nut
• 2 Bottomless Tokens for bottom-out resistance or increase of progression
